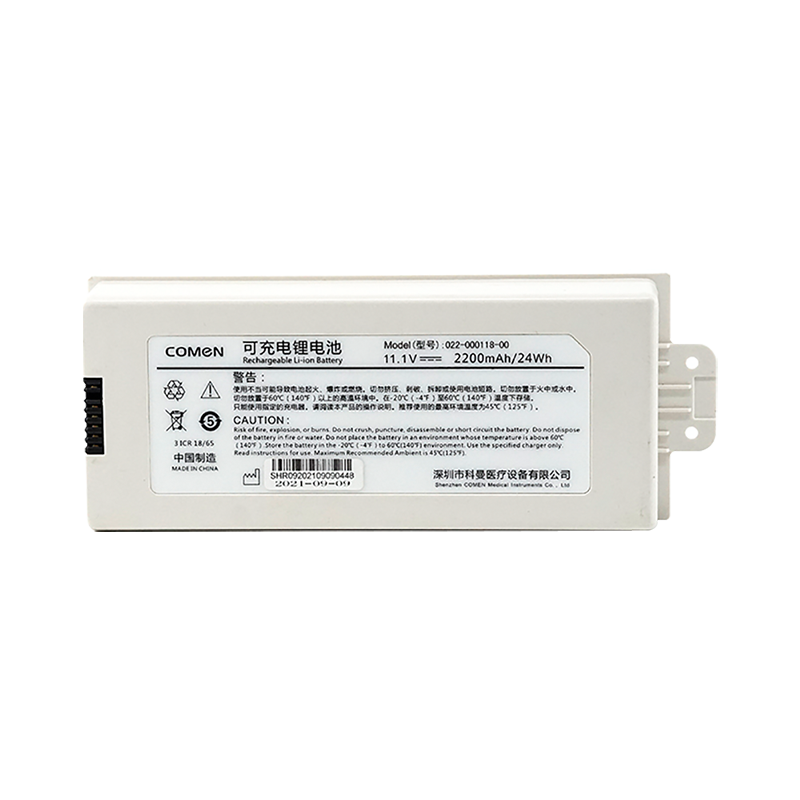

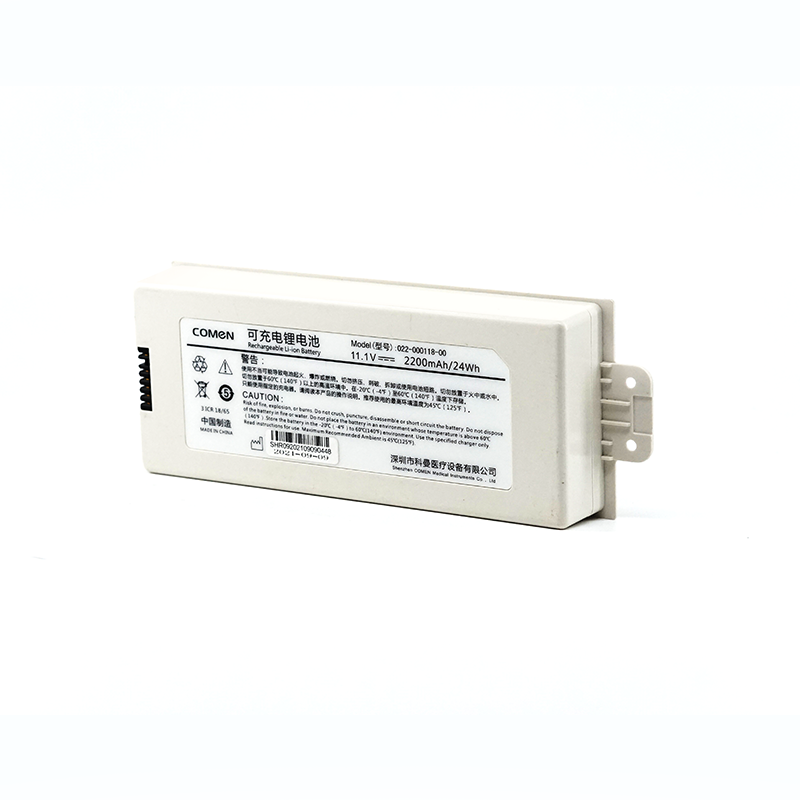

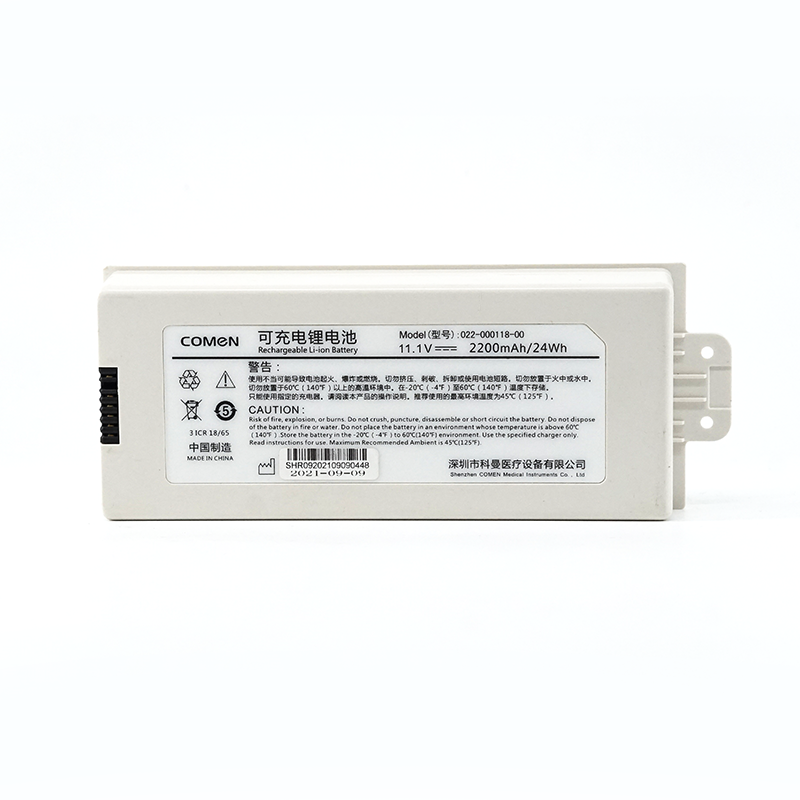

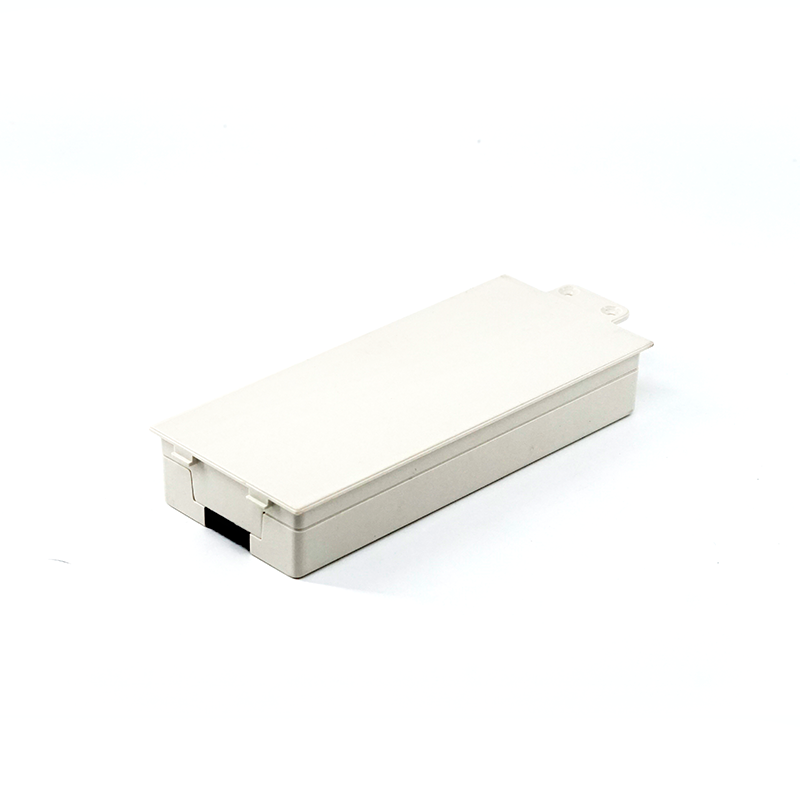

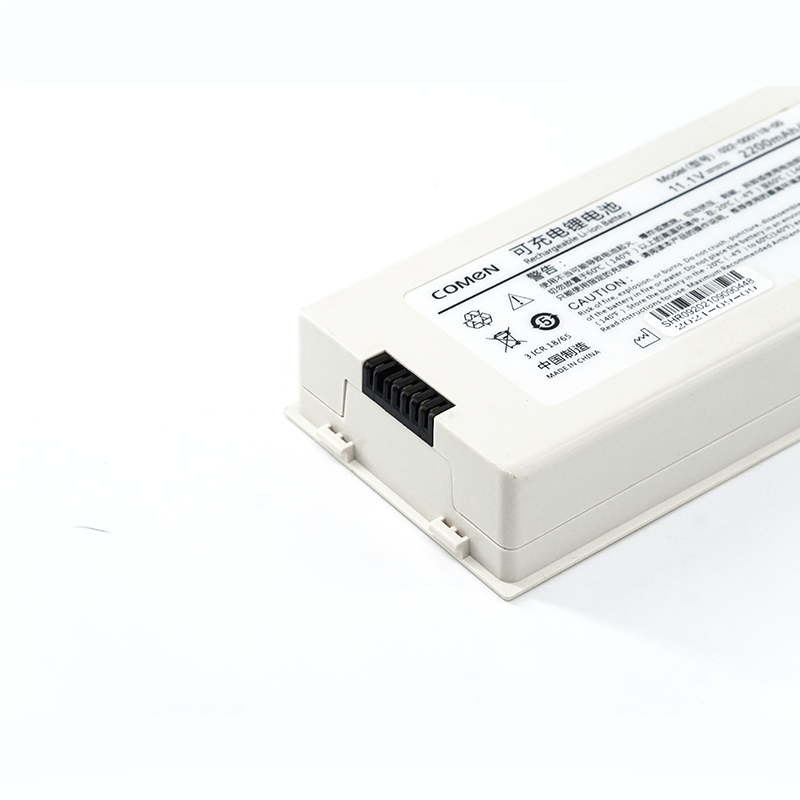

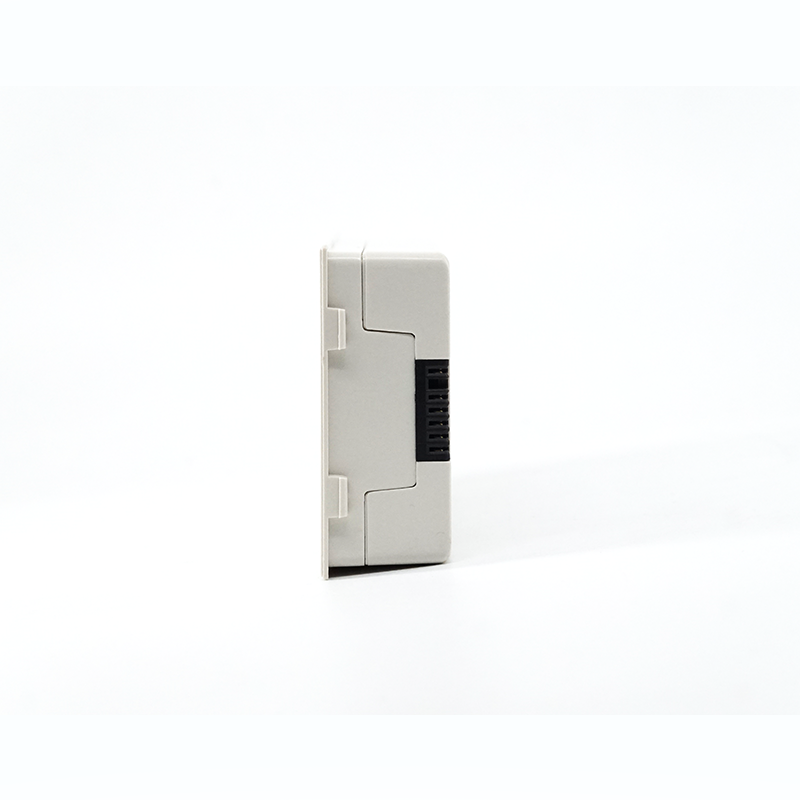

Name: Original 022-000118-00 for Comen NC10 NC8A NC12A Monitor battery 11.1V Li-ion Battery
Price: 130.0 USD

Key note highlight

Battery

Core Features

⚕️ Medical-Grade Safety Certified - Manufactured to IEC 60601-1 medical electrical equipment standards

🔋 Enhanced Power Capacity - 4400mAh high-density lithium-ion cells for extended operational time

🔄 Optimized Cycle Performance - Engineered for 600+ cycles with capacity retention above 80%

🔧 Precision OEM Compatibility - Exact dimensional and electrical specifications match original equipment

📊 Intelligent Battery Management - Advanced BMS with real-time monitoring and protection

✨ Extended Service Life - Premium cell chemistry and thermal management for longevity

Technical Specifications

Manufacturer Part Number: 022-000118-00
Battery Type: Lithium-Ion Battery Pack
Nominal Voltage: 14.8V (4S configuration)
Rated Capacity: 4400mAh
Energy Capacity: 65.12Wh
Cell Configuration: 4S2P (8 cells total)
Cell Chemistry: Lithium Cobalt Oxide (LiCoO₂) with additives
Maximum Continuous Current: 6.0A
Peak Current: 10.0A (≤5 seconds)
Standard Charge Current: 2.2A (0.5C)
Fast Charge Current: 4.4A (1.0C) with compatible chargers
Charge Cut-off Voltage: 16.8V ±0.1V
Discharge Cut-off Voltage: 12.0V ±0.2V
Operating Temperature Range:
- Charging: 0°C to 45°C
- Discharging: -10°C to 50°C
- Storage: -20°C to 45°C
Dimensions: 145 × 85 × 35 mm (±1.0mm tolerance)
Weight: 420g ±10g
Connector: Proprietary 6-pin medical locking connector
Cycle Life: ≥600 cycles (to 80% initial capacity)
Self-Discharge Rate: <3% per month at 25°C
Internal Resistance: <150mΩ (fresh, at 25°C)

Device Compatibility

Primary Compatible Systems

Comen C100/C110 High-Acuity Patient Monitors
Comen C200 Series Advanced Monitoring Systems
Portable ICU/CCU Monitoring Equipment
Operating Room Anesthesia Workstations
Emergency Department Vital Signs Monitors

Specifically Validated Models

Comen C100 Patient Monitor
Comen C110 Multi-Parameter Monitor
Comen C200 Central Monitoring Station
Comen C210 Transport Monitor with advanced features
Comen N800 Neonatal Monitoring System (with adapter)
Compatibility should be verified with device manual or manufacturer

Performance Characteristics

Electrical Performance Data

Voltage Stability: Maintains above 14.0V for 85% of discharge cycle
Capacity Consistency: Batch-to-batch variation <5%
Temperature Performance: Delivers 80% rated capacity at 0°C
Recovery Characteristics: Rapid voltage recovery after pulse loads
Efficiency: >95% energy conversion efficiency under typical loads

Safety and Protection Features

Advanced Battery Management System (BMS):
- Individual cell voltage monitoring (±10mV accuracy)
- Temperature monitoring at 3 points
- Current measurement with coulomb counting
- State of Charge (SOC) estimation algorithm
- State of Health (SOH) tracking
Protection Circuits:
- Overvoltage protection (per cell and pack level)
- Undervoltage protection with hysteresis
- Overcurrent protection (hardware and software)
- Short circuit protection (<1ms response)
- Temperature protection (charge/discharge limits)
- Cell balancing (passive balancing 50mA)
Communication Protocol:
- SMBus 1.1 compatible
- Manufacturer-specific authentication
- Real-time data reporting
- Error logging and reporting
