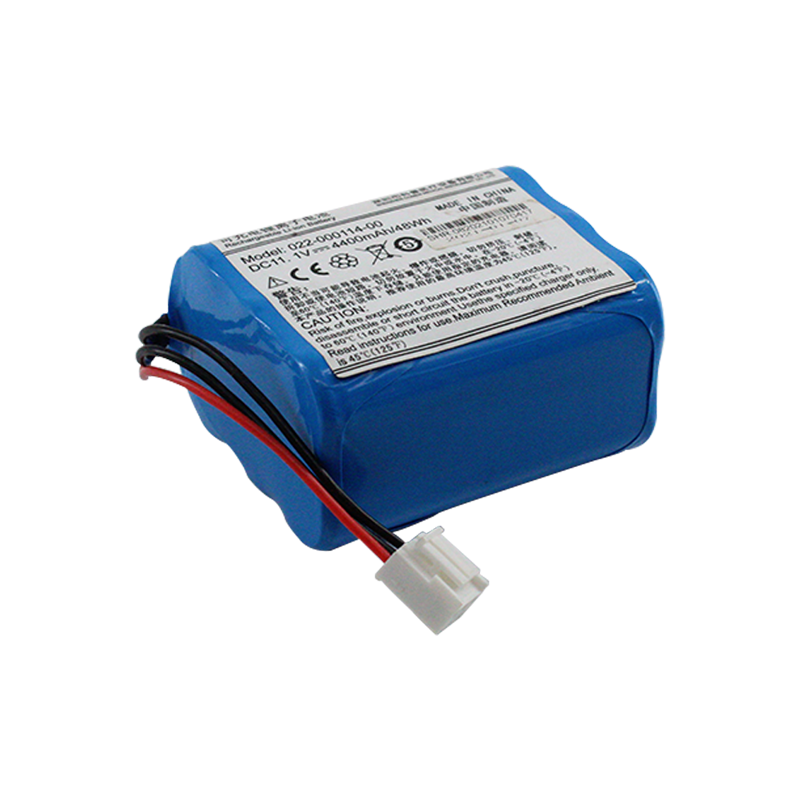

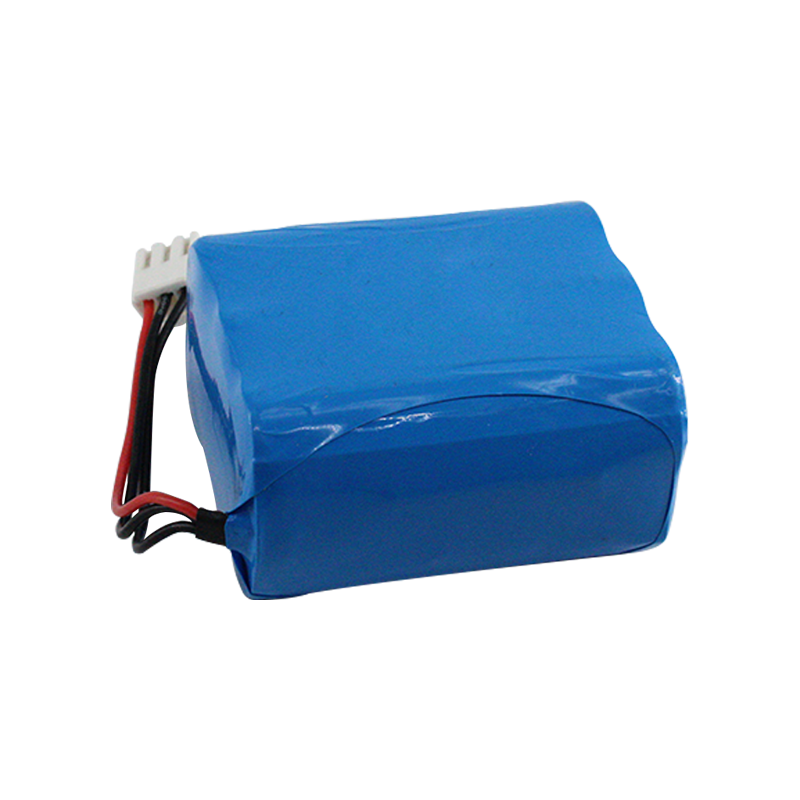

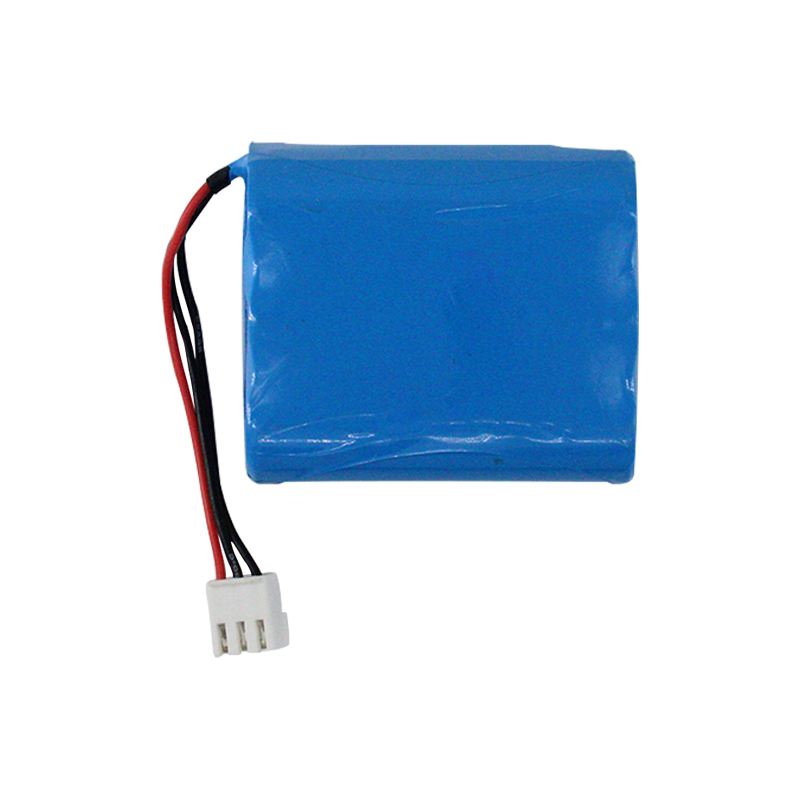

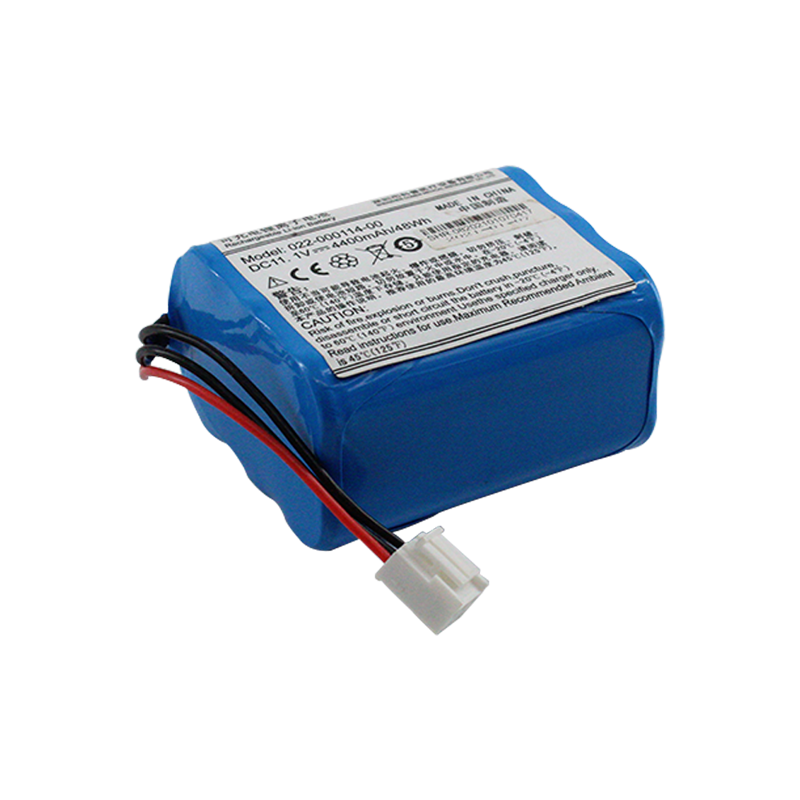

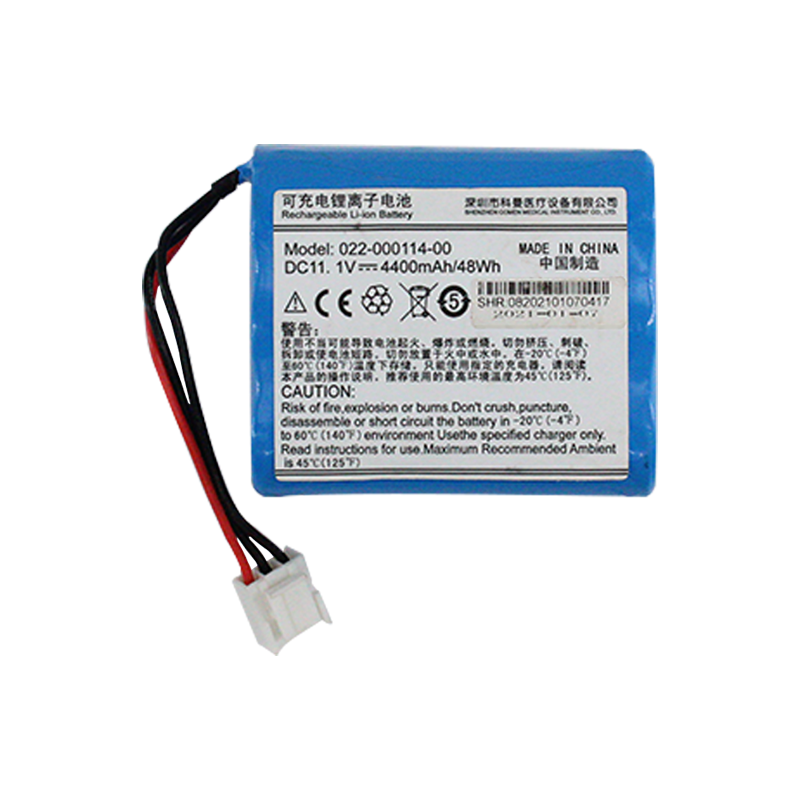

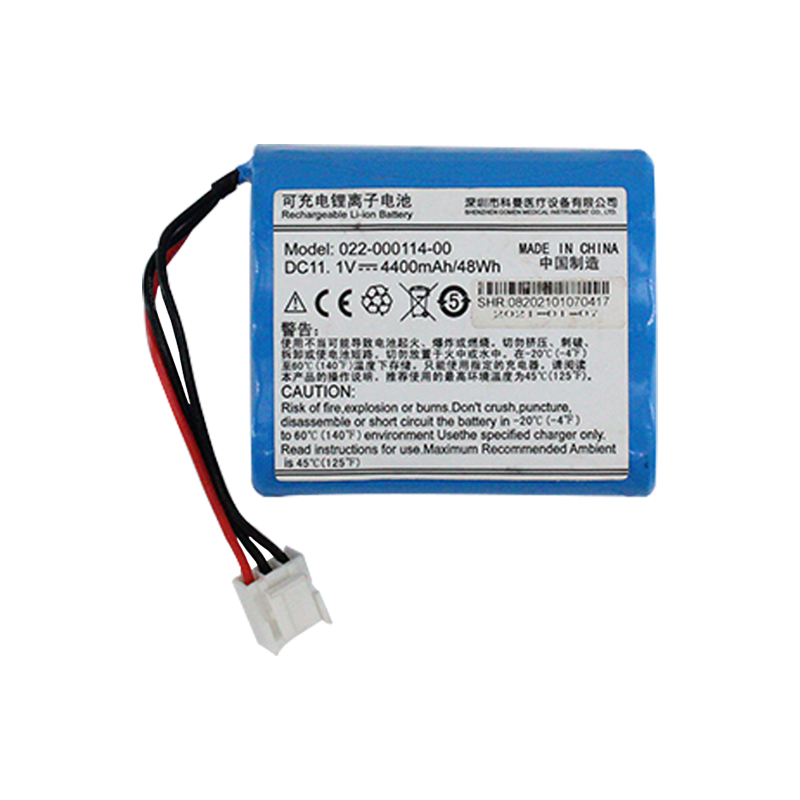

Name: Original 022-000114-00 for Comen AX-700 Anesthesia Monitor battery 11.1V Li-ion Battery
Price: 128.0 USD

Key note highlight

Core Features

⚕️ Medical-Grade Safety Standard - Strict production and testing comply with international medical device regulations

🔋 Premium Cell Composition - Utilizes A-grade ternary lithium cells for higher energy density and stability

🔄 Extended Cycle Life - Optimized formula extends service life to over 800 cycles

🔧 Precise OEM Fit - Physical dimensions and interface perfectly match original equipment

📊 Intelligent Protection - Multi-layer intelligent protection circuit ensures absolute safety

✨ Long Shelf Life - Special process treatment enables ultra-low self-discharge rate

Technical Specifications

Manufacturer Part Number: 022-000114-00
Battery Model: COMEN-MON-BAT-11400
Electrochemical System: Lithium Nickel Manganese Cobalt Oxide (NMC)
Nominal Voltage: 3.7V DC
Rated Capacity: 2200mAh (2.2Ah)
Energy Capacity: 8.14Wh
Standard Charge Current: 1.0A (0.5C)
Fast Charge Current: 2.2A (1.0C) with supported chargers
Charge Cut-off Voltage: 4.25V ±0.05V
Discharge Cut-off Voltage: 3.0V ±0.1V
Maximum Continuous Discharge: 3.0A
Peak Discharge Current: 5.0A (≤10 seconds)
Operating Temperature:
- Charging: +5°C to +45°C
- Discharging: -10°C to +55°C
- Storage: -20°C to +45°C
Dimensions: 68 × 42 × 22 mm (±0.3mm tolerance)
Weight: 78g ±2g
Connector Type: Custom 4-pin medical locking connector
Expected Cycle Life: ≥800 cycles (to 70% initial capacity)
Annual Self-Discharge: <15% at 25°C storage

Compatible Equipment

Primary Application Devices

Comen C Series Vital Signs Monitors (C50/C60/C70/C80 models)
Comen Portable Patient Monitoring Systems
Bedside Multi-Parameter Monitors
Emergency Department Monitoring Equipment
Operating Room Anesthesia Monitors

Specifically Verified Models

Comen C50 Compact Patient Monitor
Comen C60 Touchscreen Monitor
Comen C70 Transport Monitor
Comen C80 Advanced Monitor
Comen N Series Neonatal Monitors
Note: Some monitors may require firmware update for optimal compatibility

Performance Advantages

Electrical Performance

Flat Discharge Curve: Maintains above 3.5V for over 85% of capacity
Low Internal Resistance: Typically <80mΩ (at 25°C, 50% SOC)
Temperature Compensation: Automatic adjustment for environmental changes
Quick Recovery: Regains voltage rapidly after high-load pulses

Safety Architecture

Triple-level overvoltage protection
Dual-path undervoltage lockout
Precision current limiting with adjustable thresholds
Thermal runaway prevention with PTC and CID
Communication protocol authentication
Water ingress detection capability
